How to Download/Install the SigWeb Browser SDK for Topaz Signature Pad

This guide will show you how to download/install the SigWeb Browser API for Topaz Signature Pad so that it can work across modern web browsers including Firefox, Chrome and Internet Explorer 11 under Windows.

SigWeb Browser SDK

Head to the following URL: http://www.topazsystems.com/sigweb.html

Download SigWeb Browser SDK



Download SigWeb based on your pad model (listed on the back of your Topaz signature pad). Please select the right option when it comes to your model:

  1. If your Topaz signature pad model ends in “-HSB-R”, “-BHSB-R”, or “B-R”, download SigWeb from the following link: www.topazsystems.com/software/sigweb.exe.
  2. If your Topaz signature pad model ends in “-BSB-R” or “-BBSB-R”, download SigWeb BSB from the following link: www.topazsystems.com/software/sigwebbsb.exe.

Before installing, be sure to close all open browsers (i.e. Chrome, Firefox, Internet Explorer, etc).



If you are using our recommended hardware (found here) please use the highlighted button to start your download as it should match one of the listed models. For our example, we will be using model HSB (found on the underside of the signature pad)

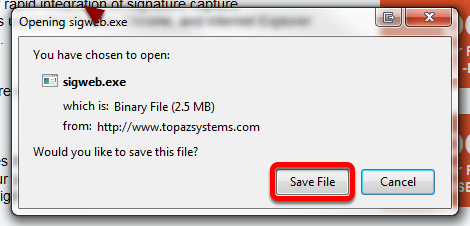

Save

Save

Click Save File

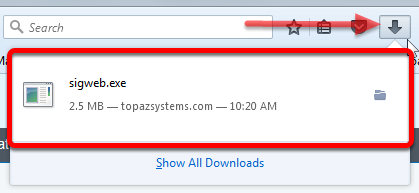

Downloads

Downloads

After saving and downloading the file, you must open the downloaded file. Access your browsers Downloads folder, then click on the 'sigweb.exe'

The example above is from Mozilla Firefox.

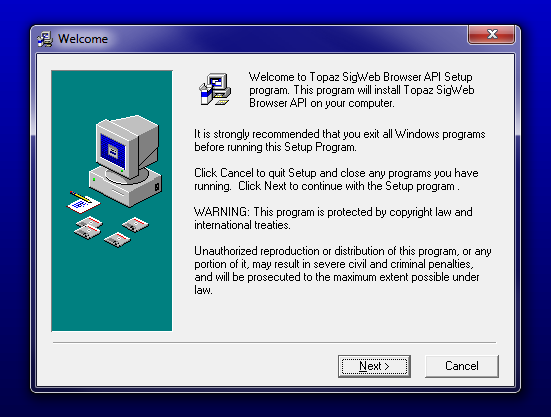

Topaz SigWeb Browser SDK Installation

Topaz SigWeb Browser API Installation

Click Next

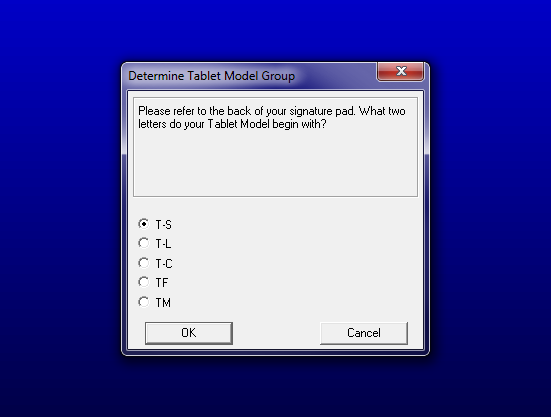

Determine Tablet Model Group

Determine Tablet Model Group

Select the Tablet Model Group. This information is located on the underside (back) of your signature pad.

Note: The signature pad used for this User Guide is Model T-S460-HSB, which would make it a part of the T-S group.

Click OK

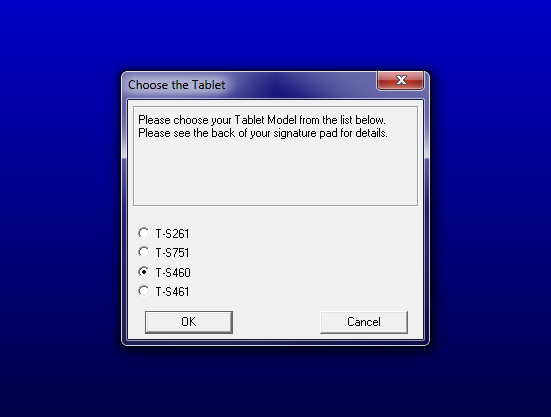

Choose the Tablet

Choose the Tablet

Choose the Tablet Model

Note: The signature pad used for this User Guide is Model T-S460-HSB, which would make it the T-S460 model.

Click OK

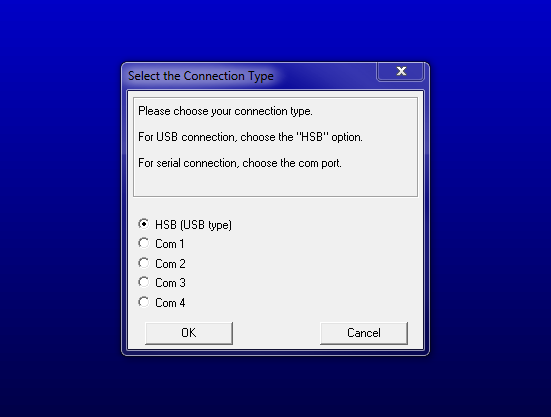

Select the Connection Type

Select the Connection Type

Select the type of connection used to connect the signature pad to your PC.

Note: The signature pad used for this User Guide is Model T-S460-HSB, which would make it the HSB (USB type) connection.

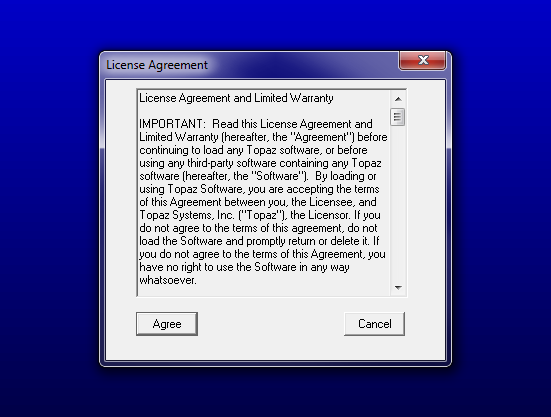

License Agreement

License Agreement

Read through the License Agreement and click Agree

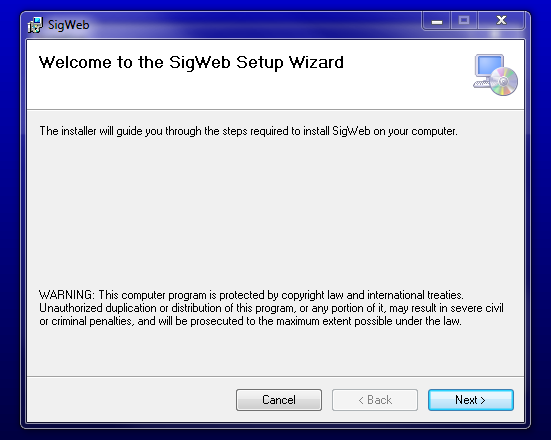

Installation and SigWeb Set Up Wizard

Installation and SigWeb Set Up Wizard

At this time your PC may install some files and then display the screen above.

Click Next

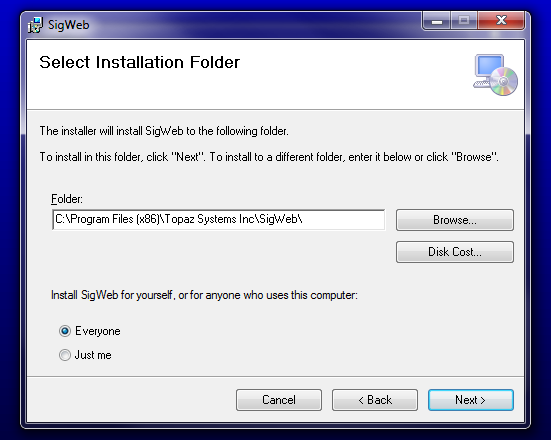

Select Installation Folder

Select Installation Folder

It is recommended you install the application to the default folder, but if you would like to change it you may Browse for another folder or drive.

Click Next

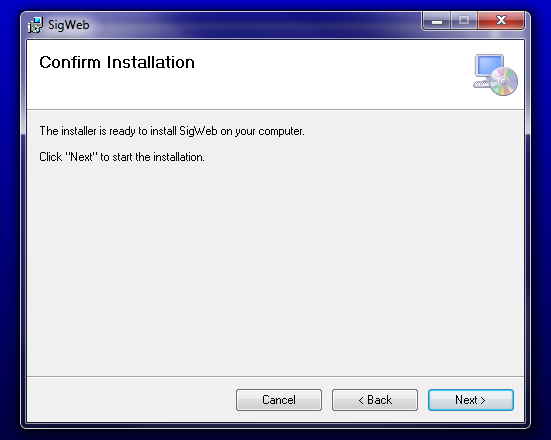

Confirm Installation

Confirm Installation

Click Next to start the installation

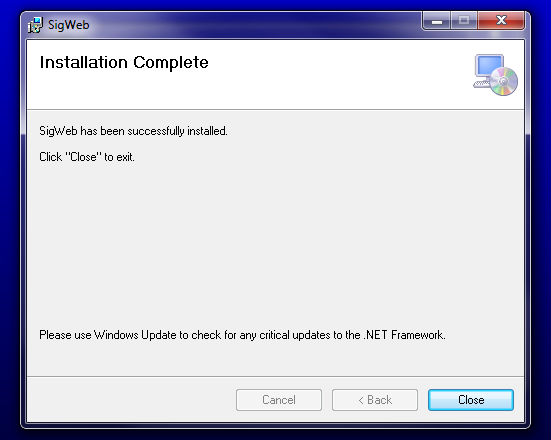

Installation Complete

Installation Complete

Click Close to exit

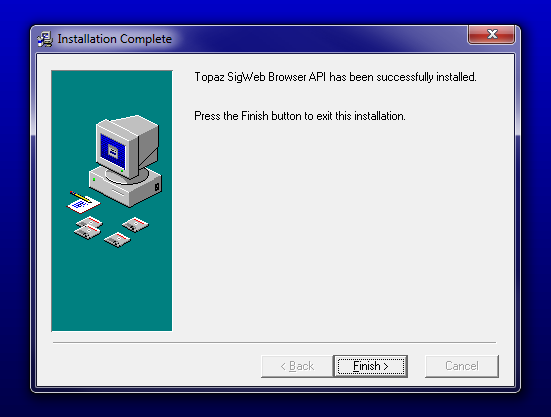

Finish

Finish

Click the Finish button to exit this installation
